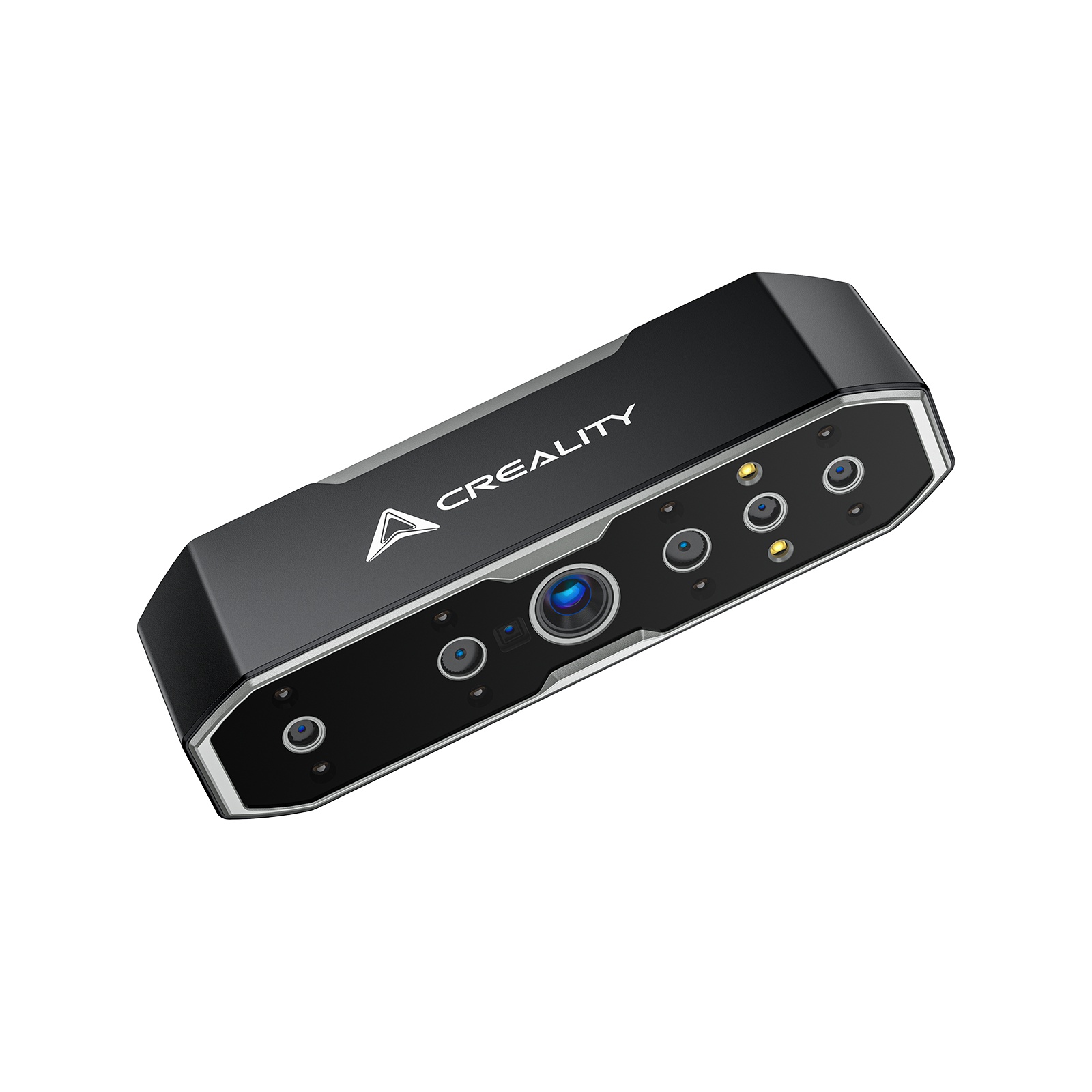

Creality CR-Scan Otter 3D Scanner: Precision and Versatility for All Your Scanning Needs
Unmatched Precision and Detail

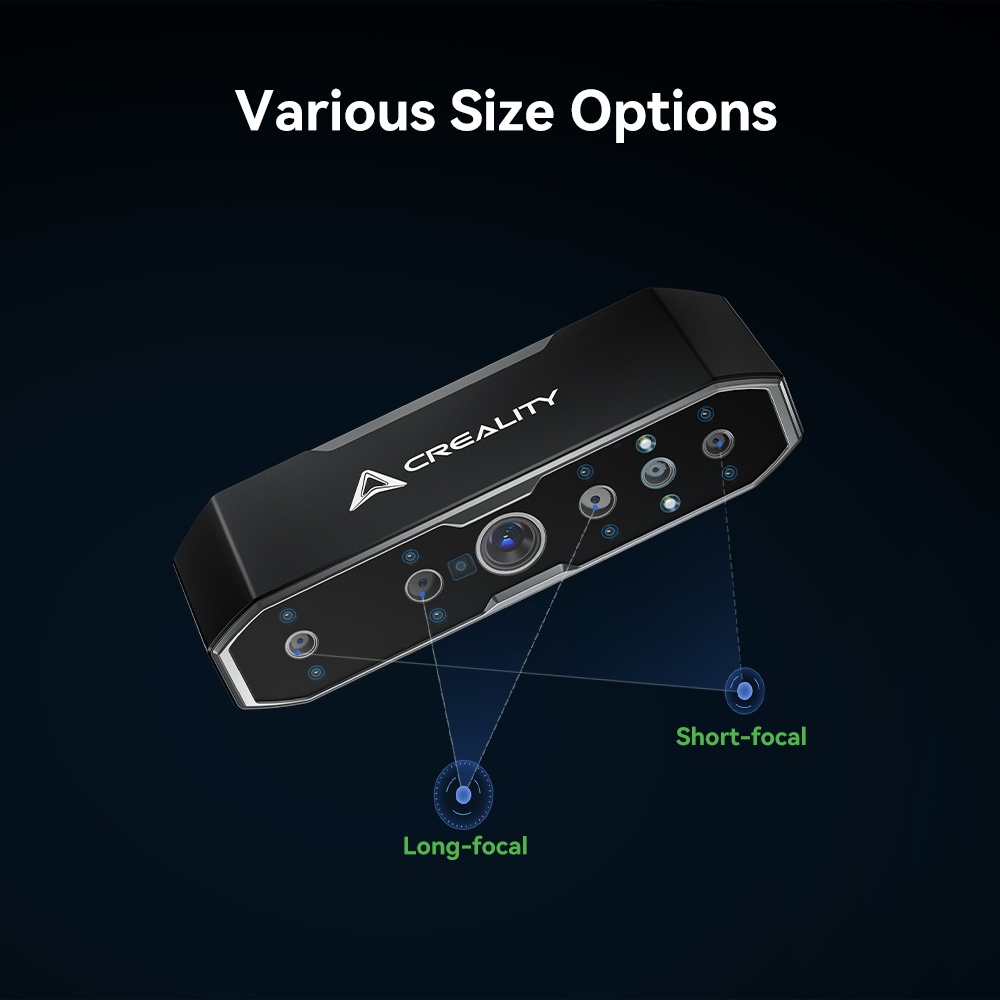

The Creality CR-Scan Otter 3D Scanner delivers precision up to 0.02mm, ensuring every detail is sharp and clear. With two sets of dual lenses, it proficiently handles both large and small scans. The long-focal dual lenses capture intricate details in small objects, while the short-focal dual lenses cover a wider range for larger objects.
Advanced Scanning Capabilities
This scanner excels in scanning black and metal objects without the need for spraying. You can effortlessly scan cars, car parts, tires, and more, achieving the desired model effect. The innovative four-lens stereo vision technology ensures naturally stabilized scanning, reducing the likelihood of tracking loss and providing a smooth scanning experience.
Wide Range of Applications
The CR-Scan Otter is versatile enough to scan objects ranging from 10mm to 2000mm in size. Whether it’s tiny coins or large vehicles, this scanner has you covered. The scanning distances range from 110mm to 1200mm, effectively capturing items of various sizes with ultra-high precision and rich detail.
Cutting-edge Technology
Adopting a state-of-the-art structure-light stereo-matching algorithm and optical design, the Otter faithfully reproduces the authentic texture and contours of objects. Its near-infrared light, invisible to the human eye, ensures safe scanning, even for human bodies, taking only 2 minutes for a full-body scan.
Outdoor and Cross-Platform Functionality
Engineered with advanced DOE 3D structure-light technology, the CR-Scan Otter maintains excellent performance even in sunlight (<30000 lux). It supports cross-platform operation on Windows and macOS, and future updates will enable wireless scanning with Android and iOS devices.
Intuitive Software and User-friendly Design
CrealityScan software offers a seamless scanning experience with step-by-step tutorials, one-click model processing, and model editing features. The scanner comes with touch buttons and audible feedback, allowing for real-time exposure adjustment and simple operation. It also supports marker scanning for higher accuracy, even on objects with fewer scanning features.
Robust and Aesthetic Design
The CR-Scan Otter boasts a full metal body with excellent heat dissipation and a fanless design for quiet operation. Its robust industrial design balances aesthetics and functionality, making it a durable and beautiful addition to your scanning toolkit.
Seamless 3D Printing Integration
Effortlessly generate precise, print-ready 3D models of virtually any object without the need for time-consuming manual creation in complex 3D modeling software. The scanned models are ready to print instantly, streamlining your workflow.
Specifications
- Accuracy: Up to 0.02mm @ 60mm
- 3D Resolution: 0.05-2mm
- Scanning Speed: Up to 20fps
- Min. Scan Volume: 10mm x 10mm x 10mm
- Single Capture Range: Max. 665mm×574mm @ 1000mm
- Technology: Infrared structured light
- Working Distance: 110mm-1000mm
- Color Mapping: Yes
- Alignment Modes: Geometry/Marker/Texture
- Output Format: OBJ/STL/PLY
- IMU: Yes
- Color Supplemental Light: 2 white LEDs
- Marker Recognition: Enhancement 8 Blue LEDs
- Laser Safety: Class I (eye safe)
- System Support: Windows/macOS (Wireless scanning accessories required for iPhone iOS/Android)
- Wireless Scanning: Supported with future wireless scanning accessories
- Buttons: Touch
- Audible Prompt: Yes
- Operating Temperature: -10°C to 40°C
- Operating Humidity: 0-90% RH
- Input Power: 5V3A
- Data Interface: Type C/USB3.0/USB2.0
- Device Dimensions: 165mm×37mmx59mm
- Device Weight: 390g
Experience unmatched precision and versatility with the Creality CR-Scan Otter 3D Scanner. Whether scanning small or large objects, this advanced scanner meets all your 3D scanning needs with ease.
