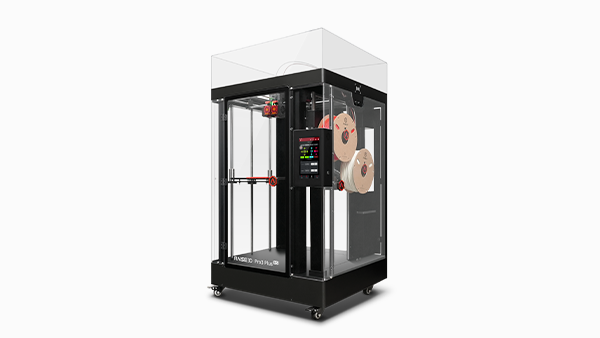

Raise3D Pro3 HS – The New Benchmark in Industrial 3D Printing
The Raise3D Pro3 HS Series is engineered for professionals who demand uncompromising speed, strength, and reliability in additive manufacturing. Building upon the award-winning Pro3 platform, the HS edition pushes performance to new heights with innovations tailored for industrial-scale production and end-use applications.
Hyper Speed Printing Performance
At the heart of the Pro3 HS is its compatibility with Raise3D’s Hyper Core filament line. These advanced materials feature a fast-melting and cooling profile, delivering exceptional Z-direction strength and stiffness at high printing speeds. The result: precision parts produced faster than ever before, without sacrificing durability or dimensional accuracy.
Silicon Carbide Nozzle for Demanding Applications
To withstand the rigors of abrasive, high-performance filaments, the Pro3 HS is equipped with a Silicon Carbide Nozzle. This upgrade ensures superior wear resistance, consistent extrusion, and long service life—making it a trusted solution for engineering-grade and composite materials.
Extended Uninterrupted Printing
The Pro3 HS supports external 2.5 kg spool storage boxes (sold separately), unlocking up to 120 hours of continuous operation. By reducing manual spool changes and integrating directly with the printer’s feeding system, these large-capacity spool boxes guarantee smooth, uninterrupted material flow—even for large and complex builds.
Optimized Workflow & Reliability
Every detail of the Pro3 HS is designed to minimize downtime and maximize productivity:
Dual-extruder architecture enables advanced multi-material applications.
Seamless material management ensures stable filament delivery throughout long jobs.
Intelligent hot end assembly allows for rapid swapping and reduced maintenance.
Exclusive Pre-Sale Advantage
As part of its launch, the first batch of Pro3 HS customers will receive an additional Hyper Speed Hot End Assembly with Silicon Carbide Nozzle, along with a 1 kg spool of Hyper Core ABS CF15 filament (black) — included at no extra cost.
For Professionals Who Demand More
The Raise3D Pro3 HS is not just a 3D printer—it is a production powerhouse, built to meet the needs of manufacturers, engineers, and innovators where quality, efficiency, and reliability cannot be compromised.
Product Specification
Build Volume: 300 × 300 × 605 mm (extended Z-axis for taller prints)
Print Technology: Fused Filament Fabrication (FFF), Dual Extruder System
Print Speed:
- Maximum: 500 mm/s
- Standard: 300 mm/s
Supported Filaments:
- Hyper Core composite materials (200–300 mm/s)
- Industrial composites (100–150 mm/s)
- Open Filament Program compatible
Hot End & Nozzle:
- Strengthened all-metal hot ends
- Silicon Carbide Nozzle (abrasion-resistant for composites)
- Quick-swap hot end system
Motion System:
- Closed-loop stepper motors for precise control
- Optimized shaft design for motion stability
- Double-diaphragm couplings for longer service life
Build Plate:
- Magnetic plate with improved adhesion
- Reduces warping on tall models
Frame:
- Industrial-grade all-metal structure
- Reinforced for extra stability with taller builds
Filament Management:
- Auto filament switching
- Compatible with 2.5 kg large spool storage boxes (sold separately, up to 120h continuous printing)
- RFID filament sensor (available soon)
Special Features:
- Extended Z-axis makes it ideal for large, tall industrial prototypes
- Optimized for Hyper Core filaments and long-duration composite part production
