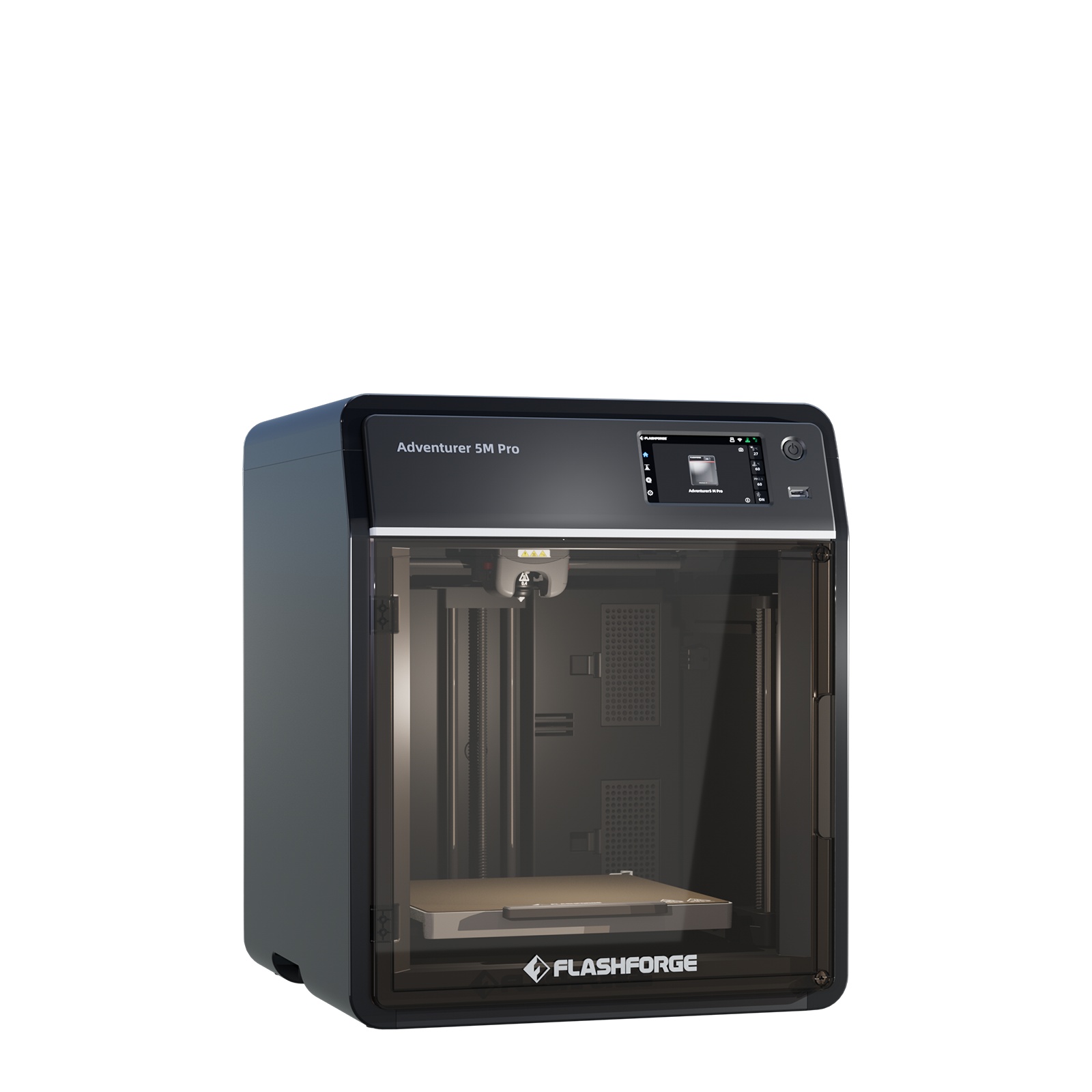

Flashforge Adventurer 5M Pro 3D Printer
Next-Level Efficiency and Performance
The Flashforge Adventurer 5M Pro 3D Printer represents the pinnacle of high-speed 3D printing technology, combining professional-grade quality with user-friendly features. This advanced printer is designed to meet the needs of both beginners and seasoned printing veterans, offering unmatched performance and reliability.
Flawless Auto Leveling and Calibration
Achieve perfect prints every time with the Adventurer 5M Pro’s fully auto-leveling and calibration system. This feature ensures a flawless first layer, eliminating the need for manual adjustments and enhancing overall print quality.
High-Speed Printing and Acceleration

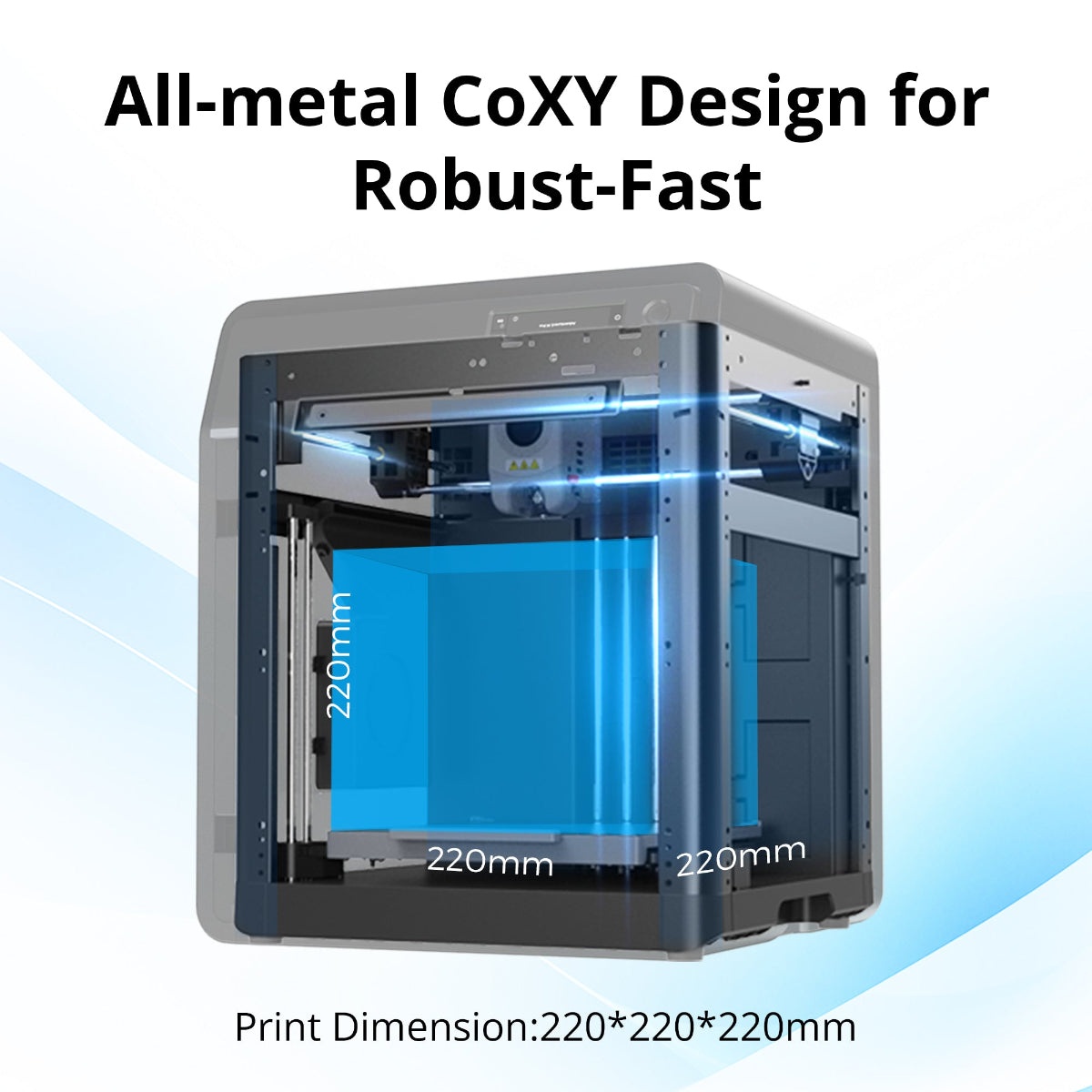

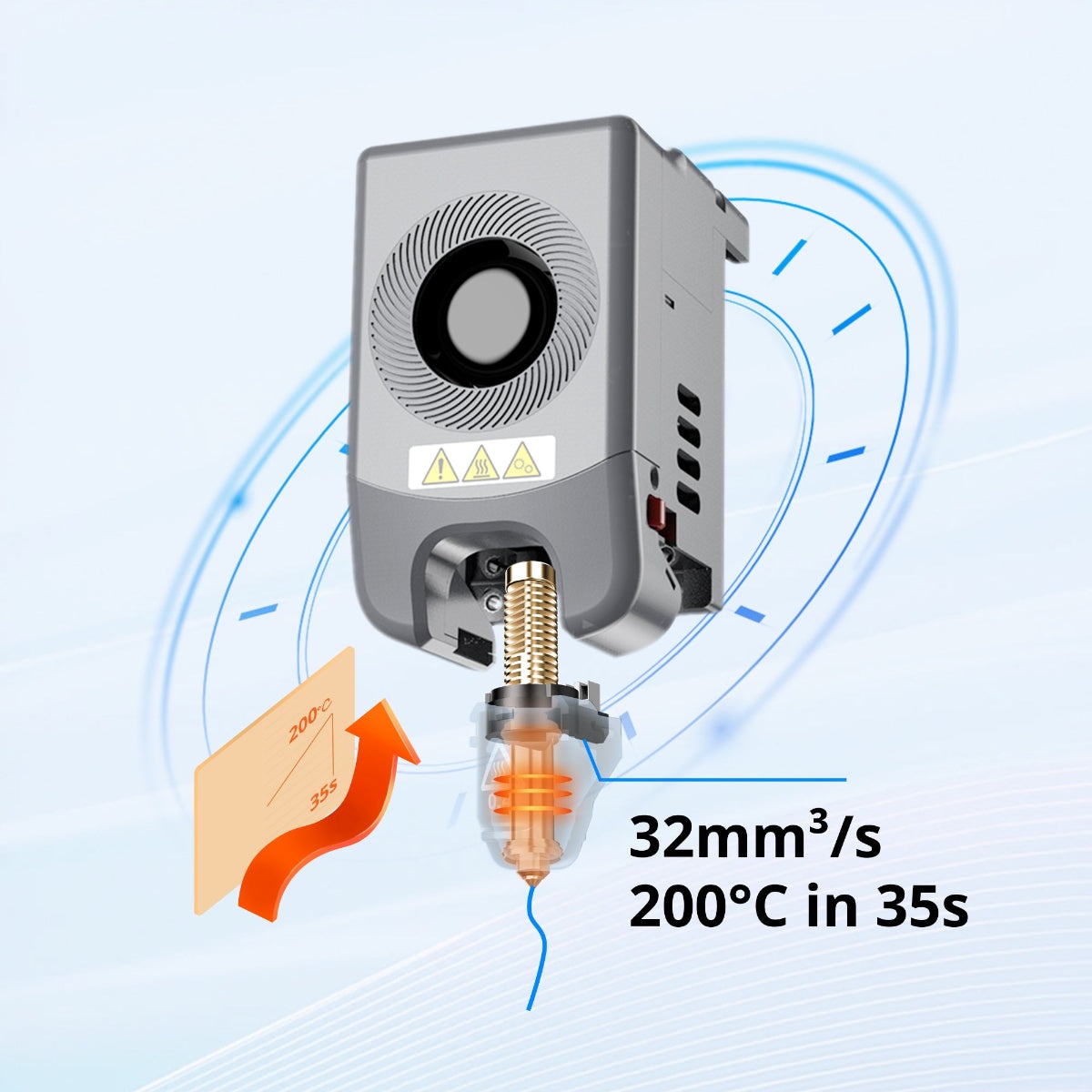

Join the high-speed printing revolution with the Adventurer 5M Pro. Equipped with a Core XY structure and all-metal frame, it supports stable and low-noise printing even in high-speed mode. The direct drive system ensures accurate filament extrusion pressure control, while the 280° rapid heating nozzle provides 360° surround heating and 50W heating power, reaching 200°C in just 35 seconds and achieving a high flow rate of 32mm³/s.
Vibration Compensation for Smooth Prints
Eliminate ghosting and achieve smooth surface finishes on your models with the Adventurer 5M Pro’s vibration compensation feature. The effective dual-channel cooling system, combined with auxiliary chamber cooling, ensures rapid cooling of your models, maintaining high print quality.
Pro-Grade Construction and Filtration System

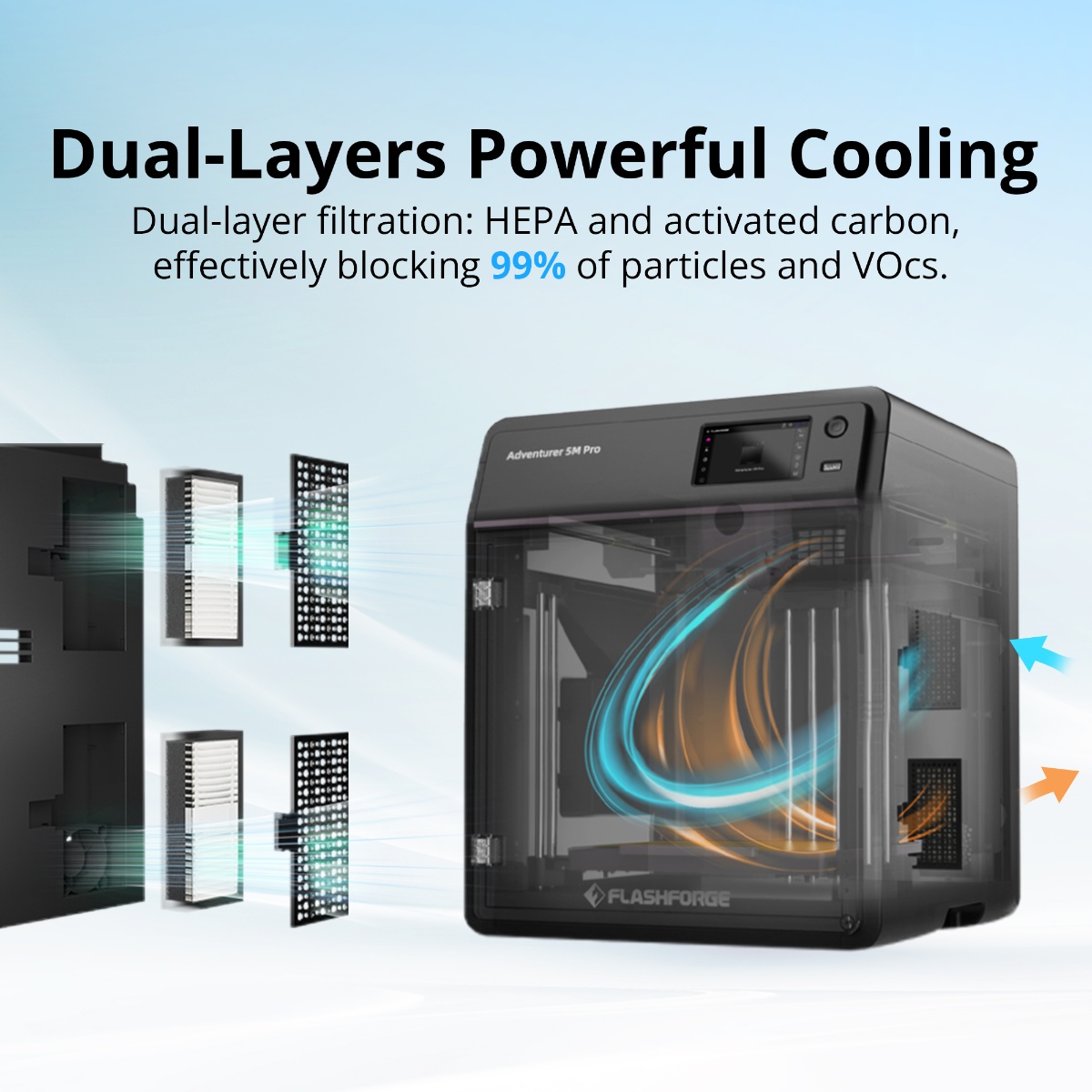

Built with a sturdy design, the Adventurer 5M Pro features a fully enclosed printing chamber and a HEPA H13 and activated carbon air filtration system. This dual filtration system blocks 99% of particulate matter and VOCs, ensuring safe printing environments for home, office, or classroom use. The inner circulation filtration improves cavity air for materials like ABS, while the external circulation filtration is ideal for PLA and PETG.
Enhanced Compatibility and Cloud Management
The Adventurer 5M Pro is compatible with a wide range of materials, including PLA, PETG, ABS, ASA, TPU, PLA-CF, PETG-CF, and High-Speed PLA. It supports various printing modes and integrates with FlashPrint cloud management for seamless remote control and monitoring. Manage multiple printers, monitor print status, and control your printing progress effortlessly.
Specifications
Number of Extruders: Single
Print Technology: FFF (Fused Filament Fabrication)
Print Volume: 220 x 220 x 220 mm (8.7 x 8.7 x 8.7 in)
Print Precision: ±0.2 mm
Positioning Precision: X/Y-Axis: 0.025 mm; Z-Axis: 0.0025 mm
Nozzle Diameter: 0.4 mm (Standard); 0.22 mm, 0.6 mm & 0.8 mm (Optional)
Layer Thickness: 0.1 ~ 0.4 mm
Print Speed: Up to 300 mm/s
Travel Speed: Up to 600 mm/s
Acceleration: 20,000 mm/s²
Maximum Extruder Temperature: 280°C (509°F)
Filament Compatibility: PLA, PETG, TPU (0.4mm nozzle); ABS, ASA, PLA-CF, PETG-CF (0.6/0.8mm nozzle)
Heated Build Plate: Yes
Mechanical & Dimensions

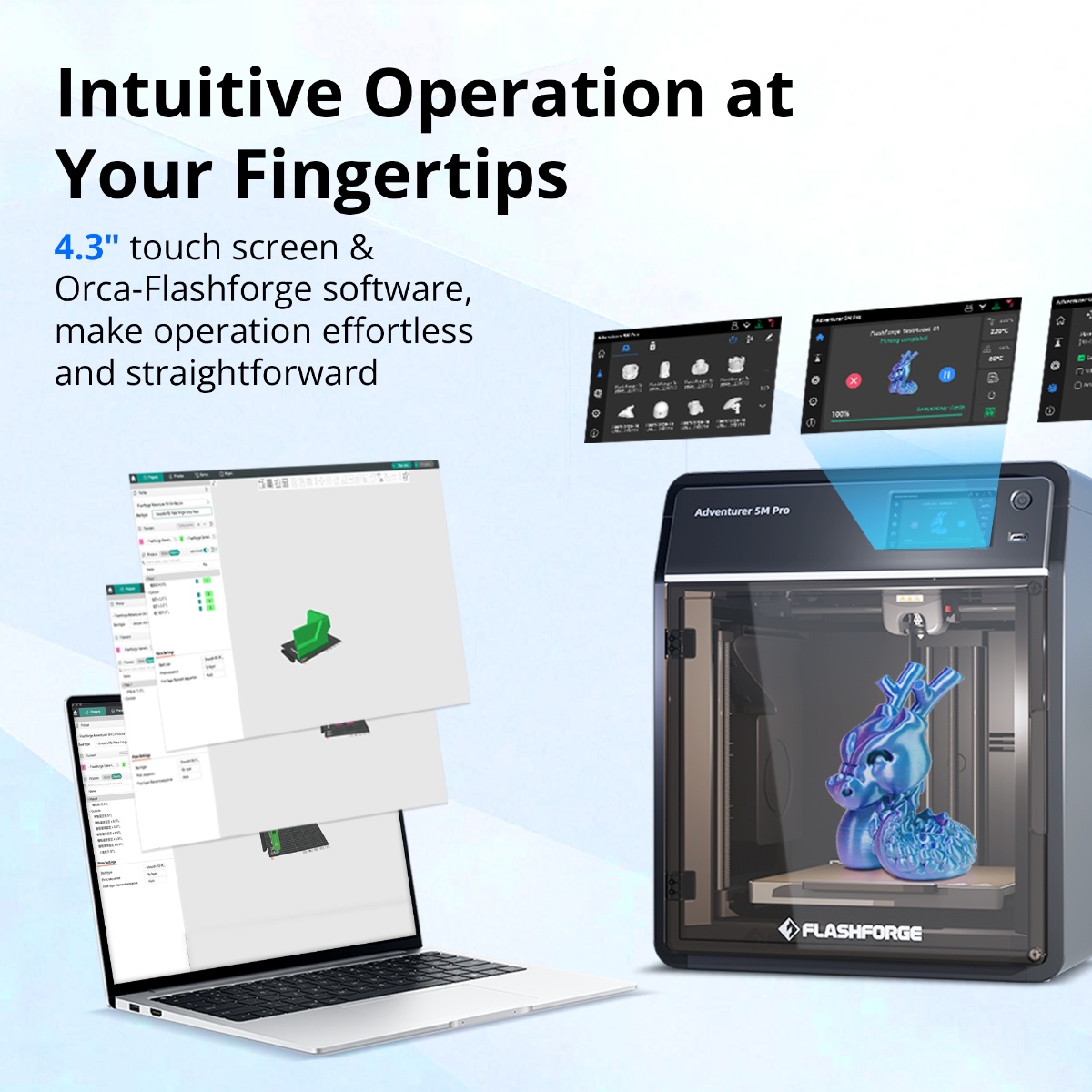

Screen: 4.3-inch Touch LCD Screen
Air Filter: HEPA H13 with Activated Carbon
Remote Camera Monitoring: Yes
Print Platform: PEI Build Plate
Printer Dimensions: 380(L) x 400(W) x 453(H) mm (15 x 15.7 x 17.8 in)
Package Dimensions: 460(L) x 480(W) x 530(H) mm (18 x 19 x 21 in)
Net Weight: 44.3 LBS (20.1 kg)
Gross Weight: 58.4 LBS (26.5 kg)
Electrical
Power Supply: AC 100-240V / DC 24V / 13.3A, 320W
Connectivity: USB Stick, Wi-Fi, Ethernet, and Cloud Printing
Software
Slicing Software: FlashPrint / Polar Cloud / Cura
File Input Format: 3MF / STL / OBJ / FPP / BMP / PNG / JPEG
File Output Format: GX / G
Supports (OS): Win7/8/10/11, Linux supports Ubuntu 20.04 and later, Mac OS 10.9 and later
What’s in the Box
Adventurer 5M Pro 3D Printer
250G PLA Filament
Power Cord
Quick Start Guide
0.6 mm Nozzle Kit
Screw Driver
Hex Wrench Set
Grease
USB Drive
Leveling Tool
Filament Holder
Pliers
Glue
Upgrade your 3D printing experience with the Flashforge Adventurer 5M Pro, offering high-speed, precision, and safety for all your creative needs.
