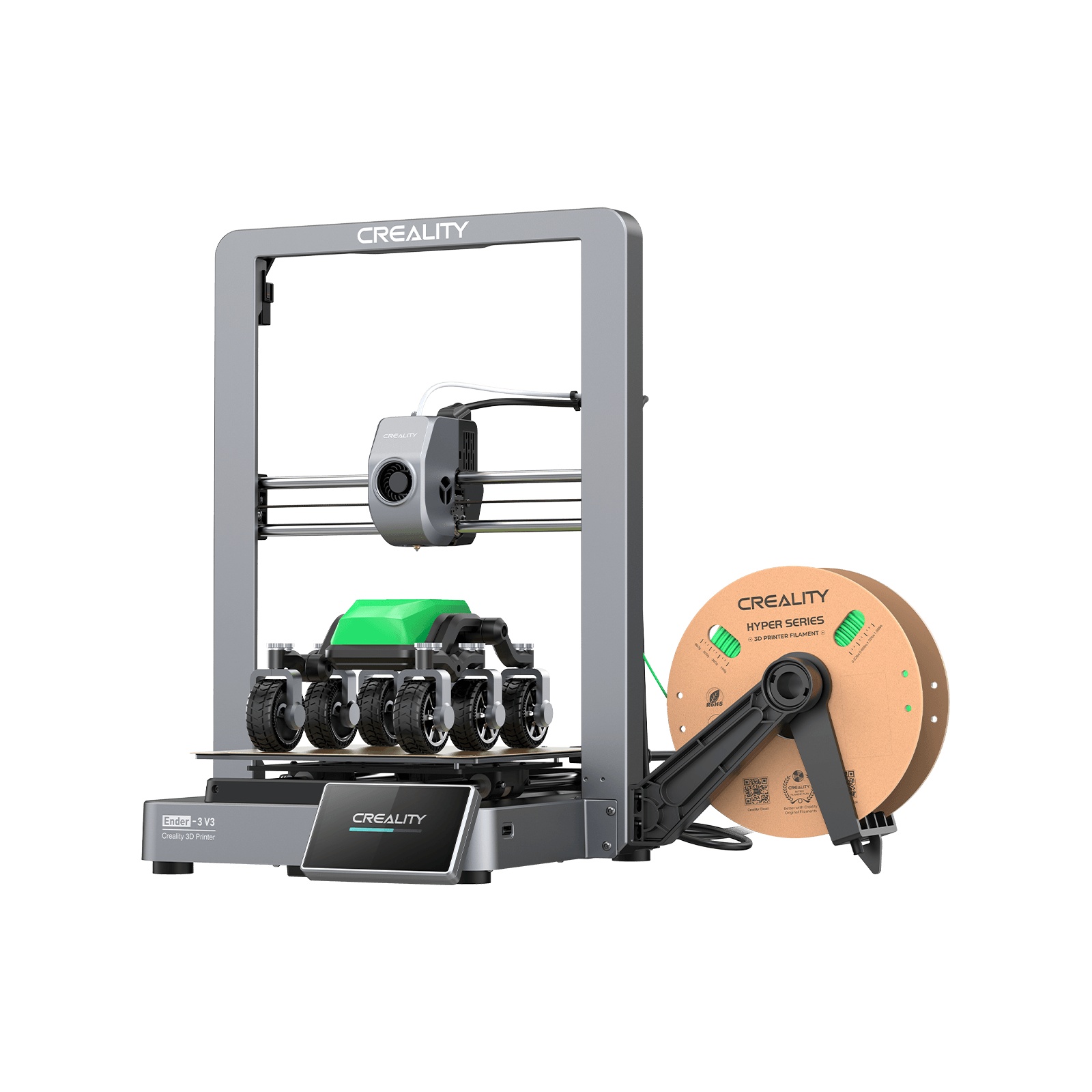

Creality Ender-3 V3 CoreXZ 3D Printer: Redefine Speed and Stability
Fast and Stable Printing
The Creality Ender-3 V3 CoreXZ 3D Printer sets a new standard for bedslinger printers with its innovative design and cutting-edge technology. It features a new CoreXZ motion system that enables it to print up to 12 times faster than traditional i3-style 3D printers. With a maximum printing speed of 600mm/s and acceleration of 20000mm/s², this printer delivers efficiency and precision.

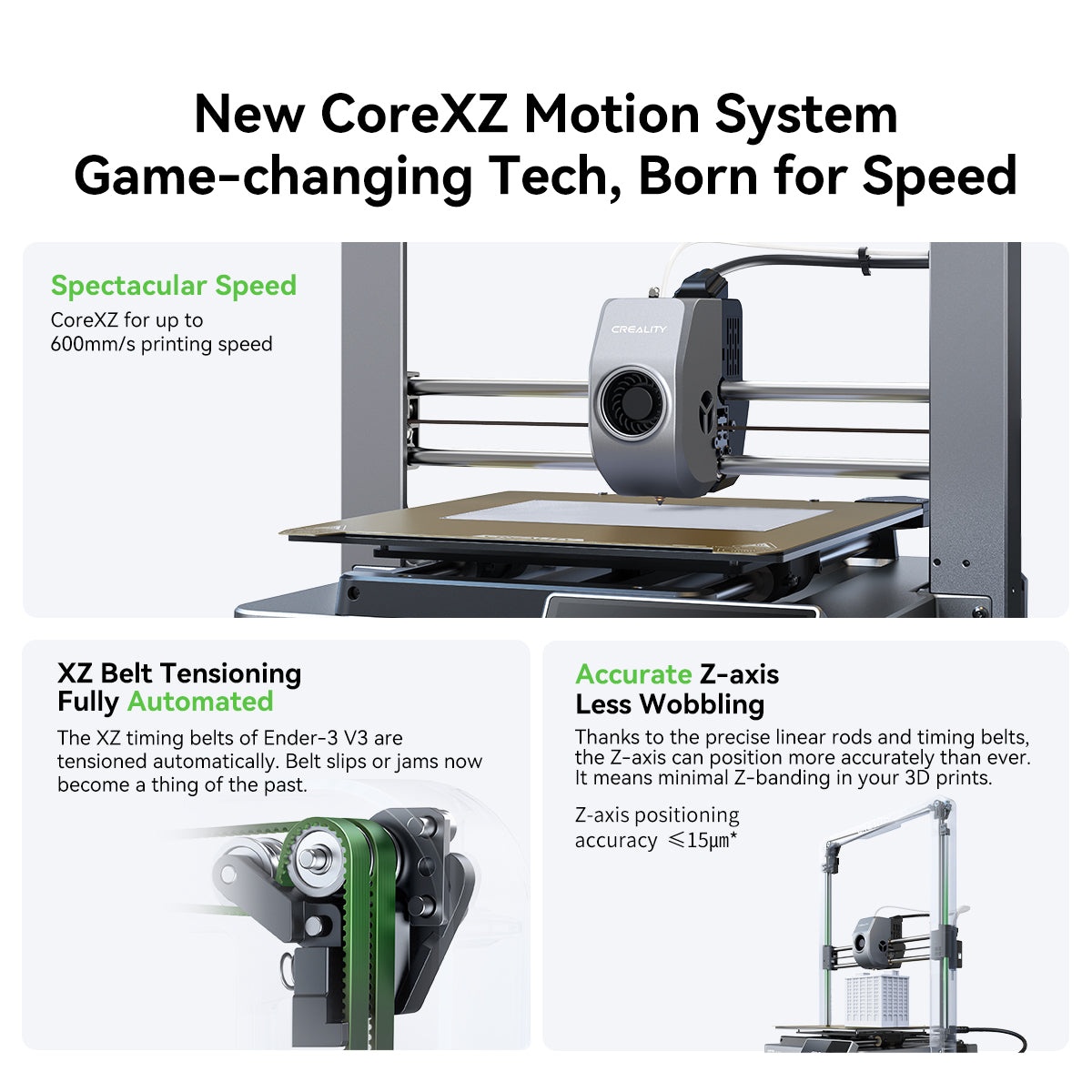

Coordinated XZ Motion
The X and Z axes are rigged together, allowing the two high-torque motors to work in unison for swift, coordinated movements. This design ensures rapid acceleration from 0 to 600mm/s in just 0.03 seconds, providing faster and better print results.
Automated Belt Tensioning
The Ender-3 V3’s XZ timing belts are automatically tensioned, eliminating the risk of belt slips or jams. This feature, combined with precise linear rods and timing belts, ensures accurate Z-axis positioning and minimal Z-banding in your prints.

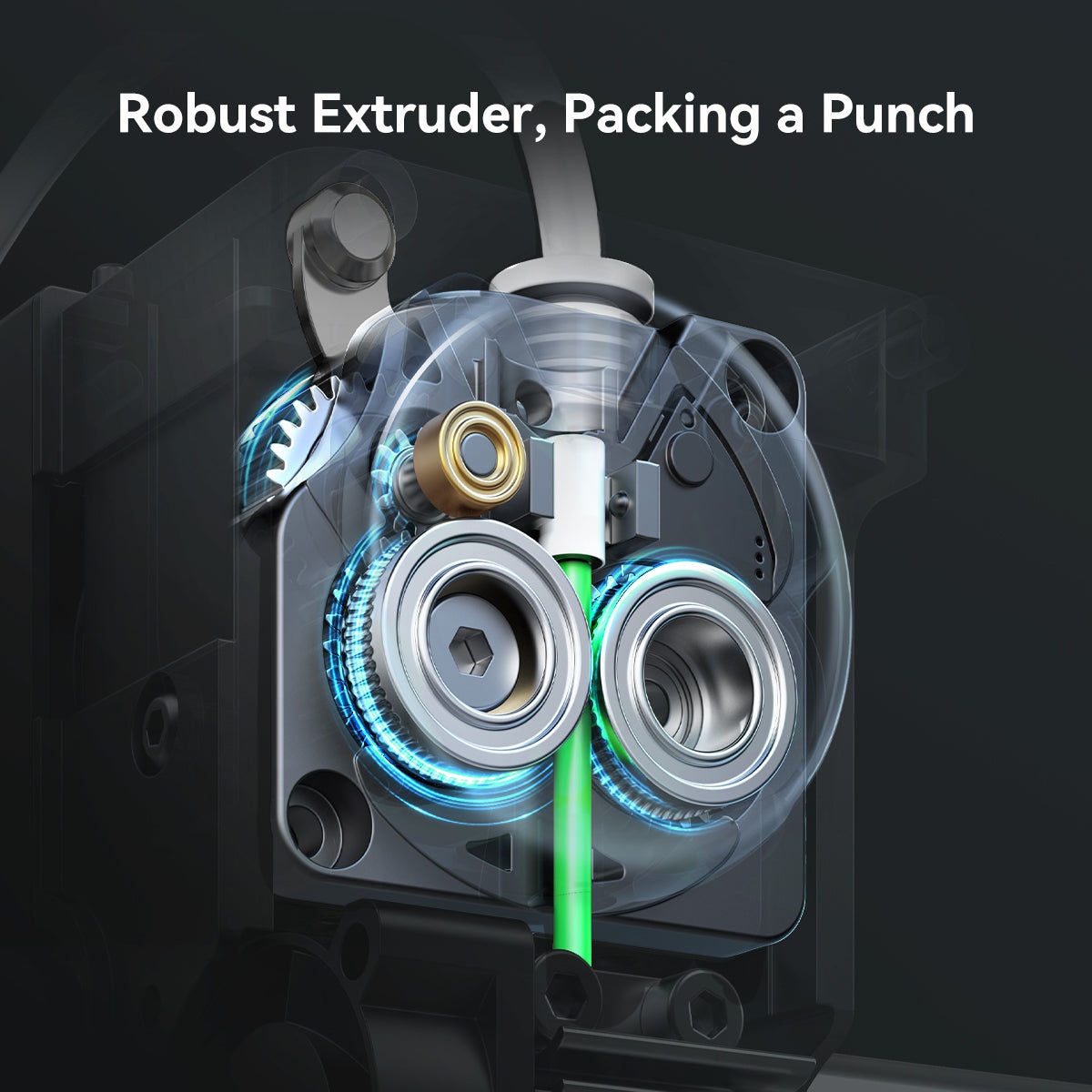

Advanced Extrusion System

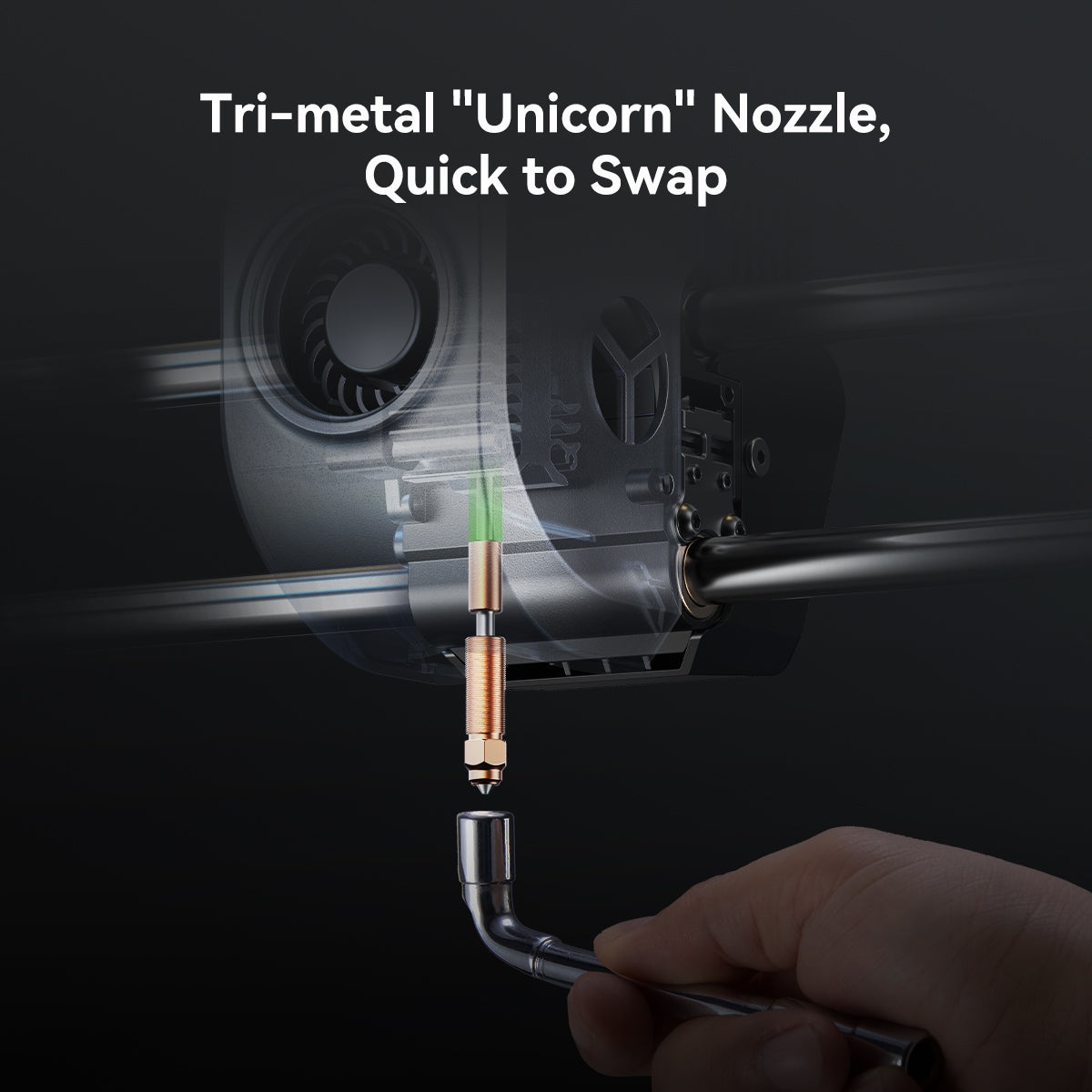

The new extruder kit includes a direct drive extruder with a bolster spring and ball plunger for reliable filament grip. The 60W hotend heater quickly reaches temperatures up to 300℃, melting high-temp filaments like ABS and PETG efficiently. The tri-metal “Unicorn” nozzle integrates a durable steel tip and titanium alloy heatbreak, allowing for quick and easy swaps.

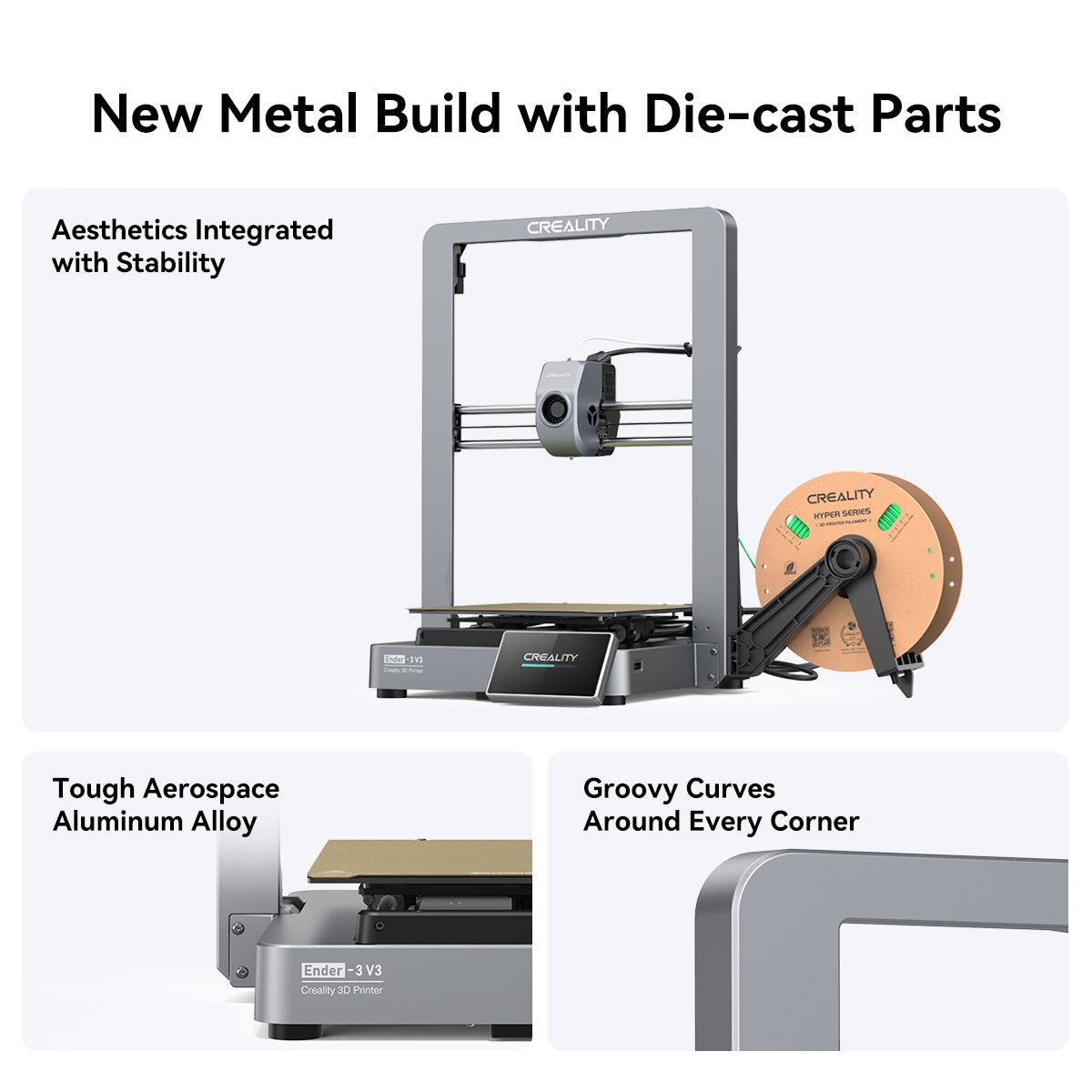

Robust and Elegant Design
Constructed with die-cast aluminum alloy, the Ender-3 V3 boasts exceptional stability and durability. The softened edges and corners enhance its aesthetic appeal, making it both robust and elegant.

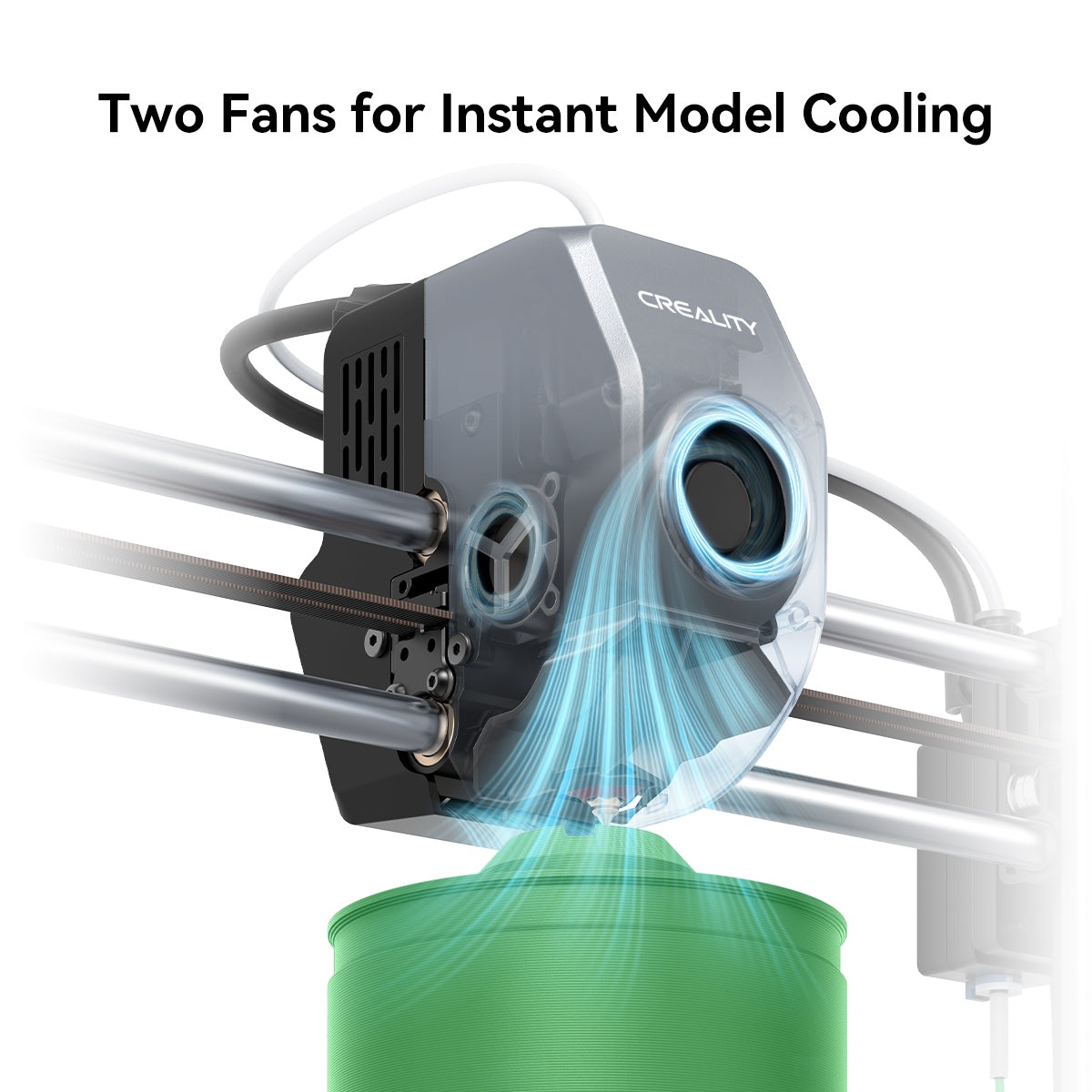

Efficient Cooling and Easy Operation

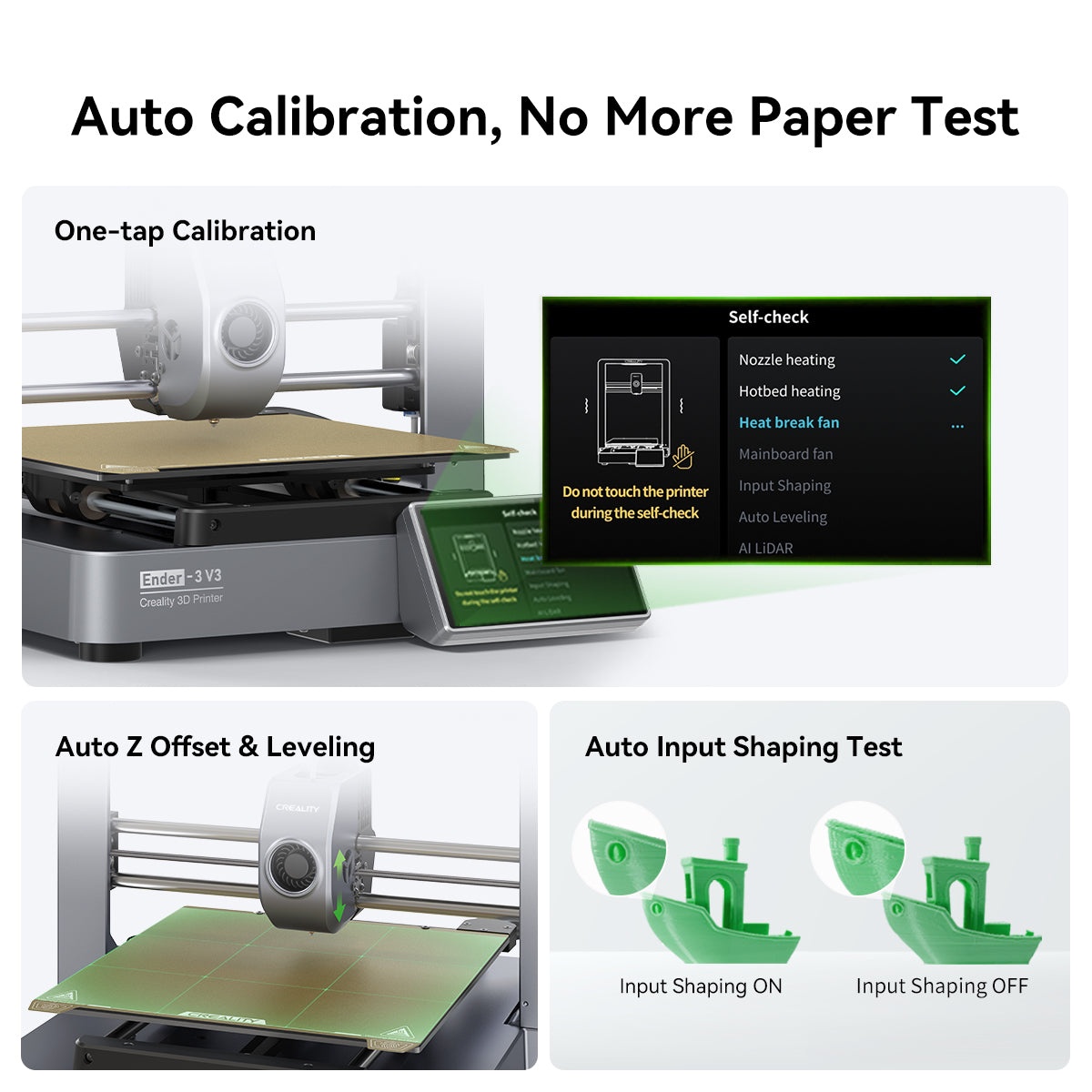

Two fans on the printhead provide rapid and even cooling, preventing drooping, warping, or stringing. The printer comes in highly pre-assembled modules, allowing even first-time users to set it up within 10 minutes. The auto-calibration feature eliminates the need for manual adjustments, while the 4.3″ HD touch screen offers a seamless user interface.
Comprehensive Software Support
The Ender-3 V3 runs on the open-source Creality OS, based on Klipper, supporting advanced functions like linear advance and input shaping. Creality Print software provides smart cooling, optimal retraction, and efficient print farm management. Creality Cloud offers a comprehensive platform with a 3D model library, cloud printing, and an engaging online community.
Specifications:
- Build Volume: 220 x 220 x 250mm
- Dimensions: 358 x 374 x 498mm
- Package Dimensions: 541 x 418 x 245mm
- Printing Speed: ≤600mm/s
- Acceleration: ≤20000mm/s²
- Layer Height: 0.1-0.35mm
- Filament Diameter: 1.75mm
- Nozzle Temperature: ≤300°C
- Heatbed Temperature: ≤110°C
- Input Shaping: Yes (G-sensor included)
- Leveling Mode: Auto Leveling
- File Transfer: USB drive / WLAN / Creality Cloud
- Nozzle Diameter: 0.4mm
- Nozzle Kit: Quick-swap nozzle (hardened steel tip) integrated with heartbreak
- Extruder: New high-speed direct drive extruder
- Nozzle Temperature: ≤300°C
- Build Plate: PEI flexible build plate
- Connectivity: WiFi, USB drive, WLAN, Creality Cloud
- Slicing Software: Creality Print
- Display Screen: 4.3″ HD color touch screen
- Mainboard: 32-bit
- Power Loss Recovery: Yes
- Filament Run-out Sensor: Yes
- AI Camera: Optional
- Rated Voltage: 100-120V~, 200-240V~, 50/60Hz
- Rated Power: 350W
- Slicing Software: Creality Print
- File Formats for Slicing: STL, OBJ, 3MF
- Supported Filaments: PLA, TPU, PETG, ABS, PLA-CF, PETG-CF, CR-carbon
Experience a new level of 3D printing with the Creality Ender-3 V3 CoreXZ 3D Printer. Its speed, stability, and advanced features make it the perfect choice for both hobbyists and professionals.
